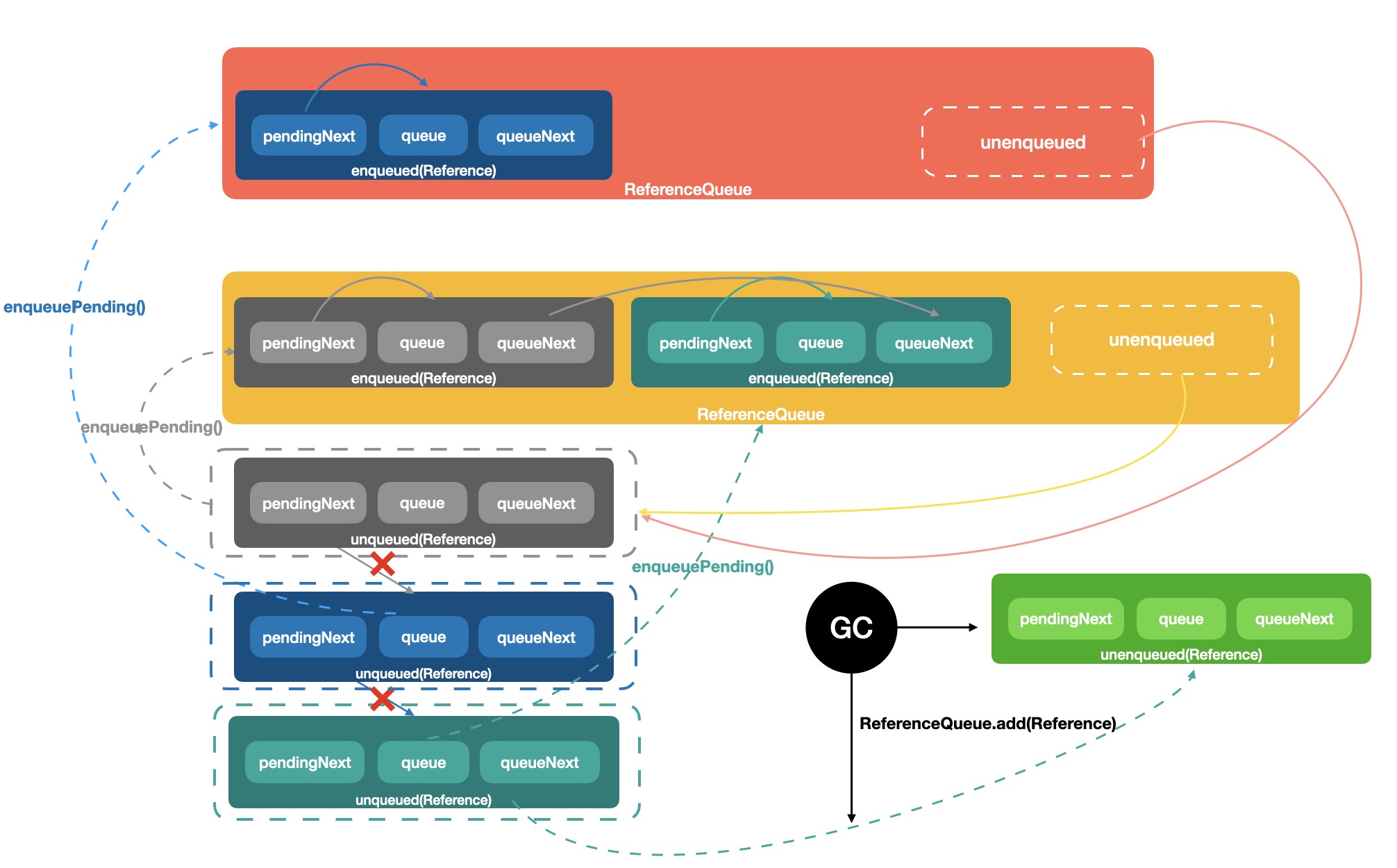

ReferenceQueue and Rumtime.gc()

public abstract class Reference<T> {
  final ReferenceQueue<? super T> queue;
  Reference queueNext;
  Reference<?> pendingNext;
}

static void add(Reference<?> list) {
    synchronized (ReferenceQueue.class) {
        if (unenqueued == null) {
            unenqueued = list;
        } else {
            // Find the last element in unenqueued.
            Reference<?> last = unenqueued;
            while (last.pendingNext != unenqueued) {
              last = last.pendingNext;
            }
            // Add our list to the end. Update the pendingNext to point back to enqueued.
            last.pendingNext = list;
            last = list;
            while (last.pendingNext != list) {
                last = last.pendingNext;
            }
            last.pendingNext = unenqueued;
        }
        ReferenceQueue.class.notifyAll();
    }
}

public static void enqueuePending(Reference<?> list) {
    Reference<?> start = list;
    do {
        ReferenceQueue queue = list.queue;
        if (queue == null) {
            Reference<?> next = list.pendingNext;
            list.pendingNext = list;
            list = next;
        } else {
            synchronized (queue.lock) {
                do {
                    Reference<?> next = list.pendingNext;
                    list.pendingNext = list;
                    queue.enqueueLocked(list);
                    list = next;
                } while (list != start && list.queue == queue);
                queue.lock.notifyAll();
            }
        }
    } while (list != start);
}

// OpenjdkJvm.cc
JNIEXPORT void JVM_GC(void) {
  if (art::Runtime::Current()->IsExplicitGcDisabled()) {
      LOG(INFO) << "Explicit GC skipped.";
      return;
  }
  art::Runtime::Current()->GetHeap()->CollectGarbage(/* clear_soft_references */ false);
}

// heap.cc
collector::GcType Heap::CollectGarbageInternal(collector::GcType gc_type, GcCause gc_cause, bool clear_soft_references) {
  // 略
  collector->Run(gc_cause, clear_soft_references || runtime->IsZygote());
  IncrementFreedEver();
  RequestTrim(self);
  // Collect cleared references.
  SelfDeletingTask* clear = reference_processor_->CollectClearedReferences(self);
  // Grow the heap so that we know when to perform the next GC.
  GrowForUtilization(collector, bytes_allocated_before_gc);
  LogGC(gc_cause, collector);
  FinishGC(self, gc_type);
  // Actually enqueue all cleared references. Do this after the GC has officially finished since
  // otherwise we can deadlock.
  clear->Run(self);
  clear->Finalize();
  // Inform DDMS that a GC completed.
  Dbg::GcDidFinish();

  // 略
}

SelfDeletingTask* ReferenceProcessor::CollectClearedReferences(Thread* self) {
  Locks::mutator_lock_->AssertNotHeld(self);
  // By default we don't actually need to do anything. Just return this no-op task to avoid having
  // to put in ifs.
  std::unique_ptr<SelfDeletingTask> result(new FunctionTask([](Thread*) {}));
  // When a runtime isn't started there are no reference queues to care about so ignore.
  if (!cleared_references_.IsEmpty()) {
    if (LIKELY(Runtime::Current()->IsStarted())) {
      jobject cleared_references;
      {
        ReaderMutexLock mu(self, *Locks::mutator_lock_);
        cleared_references = self->GetJniEnv()->GetVm()->AddGlobalRef(
            self, cleared_references_.GetList());
      }
      if (kAsyncReferenceQueueAdd) {
        // TODO: This can cause RunFinalization to terminate before newly freed objects are
        // finalized since they may not be enqueued by the time RunFinalization starts.
        Runtime::Current()->GetHeap()->GetTaskProcessor()->AddTask(
            self, new ClearedReferenceTask(cleared_references));
      } else {
        result.reset(new ClearedReferenceTask(cleared_references));
      }
    }
    cleared_references_.Clear();
  }
  return result.release();
}

class ClearedReferenceTask : public HeapTask {
 public:
  explicit ClearedReferenceTask(jobject cleared_references)
      : HeapTask(NanoTime()), cleared_references_(cleared_references) {
  }
  void Run(Thread* thread) override {
    ScopedObjectAccess soa(thread);
    jvalue args[1];
    args[0].l = cleared_references_;
    InvokeWithJValues(soa, nullptr, WellKnownClasses::java_lang_ref_ReferenceQueue_add, args);
    soa.Env()->DeleteGlobalRef(cleared_references_);
  }

 private:
  const jobject cleared_references_;
};

// Daemons.java
private static class ReferenceQueueDaemon extends Daemon {
    private static final ReferenceQueueDaemon INSTANCE = new ReferenceQueueDaemon();

    ReferenceQueueDaemon() {
        super("ReferenceQueueDaemon");
    }

    @Override public void runInternal() {
        while (isRunning()) {
            Reference<?> list;
            try {
                synchronized (ReferenceQueue.class) {
                    while (ReferenceQueue.unenqueued == null) {
                        ReferenceQueue.class.wait();
                    }
                    list = ReferenceQueue.unenqueued;
                    ReferenceQueue.unenqueued = null;
                }
            } catch (InterruptedException e) {
                continue;
            } catch (OutOfMemoryError e) {
                continue;
            }
            ReferenceQueue.enqueuePending(list);
        }
    }
}

void Runtime::StartDaemonThreads() {
  ScopedTrace trace(__FUNCTION__);
  VLOG(startup) << "Runtime::StartDaemonThreads entering";

  Thread* self = Thread::Current();

  // Must be in the kNative state for calling native methods.
  CHECK_EQ(self->GetState(), kNative);

  JNIEnv* env = self->GetJniEnv();
  env->CallStaticVoidMethod(WellKnownClasses::java_lang_Daemons,
                            WellKnownClasses::java_lang_Daemons_start);
  if (env->ExceptionCheck()) {
    env->ExceptionDescribe();
    LOG(FATAL) << "Error starting java.lang.Daemons";
  }

  VLOG(startup) << "Runtime::StartDaemonThreads exiting";
}
